SANY Crane Parts Supplier Checklist: LMI, Slew Ring & Winch QA

Selecting a SANY crane parts supplier based solely on a generic website claim of "100% genuine SANY crane spare parts"—without auditing 4 safety-critical subsystem verification gates, separating the SANY superstructure ISO 10261 PIN from the multi-axle road carrier VIN, and locking LMI calibration and written claim terms on the quotation—leads to unprogrammed CANopen vs. analog Load Moment Indicator (LMI) boom lockouts, grey-market 42CrMo slewing ring raceway spalling, wrong-pitch Lebus winch drum wire-rope crushing, and crane charter standby penalties costing $3,500 to $18,000+ per day ($24,500 to $90,000+ per rejected shipment). Across SANY mobile truck cranes (STC250T / STC250T4 (25 t), STC500 / STC500C5 (50 t), STC800T / STC800T5 (80 t), STC1000C / STC900T5 (90–100 t)), rough-terrain cranes (SRC400C (40 t), SRC550C / SRC500T (50–55 t), SRC800T (80 t)), all-terrain cranes (SAC1000 / SAC1800 (100–180 t), SAC2200 / SAC2200S7 (220 t), SAC3000 / SAC3000S8 (300 t)), and lattice/telescopic crawler cranes (SCC800TB (80 t), SCC1000A (100 t), SCC1500 / SCC1500A-6 (150 t), SCC2500A (250 t)), qualifying a crane parts exporter or distributor requires verifying pre-flashed SANY SYMC / SYIC-II / Hirschmann iFLEX5 LMI firmware protocols, EN 10204 Type 3.1 ultrasonic NDT & heat-lot certificates on 42CrMo slew rings and ISO 898-1 Grade 10.9 / 12.9 bolt kits, ISO 4309 / EN 12385-4 rotation-resistant (35Wx7 / 18x7) wire rope diameter tolerances (+1% to +3%), and hydraulic test-stand pressure-holding logs on Bosch Rexroth / Bucher / Sun Hydraulics boom counterbalance valves before payment.

Engineering boundary and international standards summary: Under EN 13000:2010+A1:2014 (Cranes — Mobile cranes safety and Rated Capacity Limiter RCL / LMI motion cutouts), ASME B30.5 (Mobile and Locomotive Cranes — two-blocking A2B damage prevention and load-holding valve integrity), ISO 4309 / ISO 2408 / EN 12385-4 (crane rotation-resistant wire ropes, +1% to +3% positive diameter tolerance, and minimum breaking force certification), EN 10204:2004 Type 3.1 (metallic product inspection certificates independent of manufacturing), ISO 898-1 (Grade 10.9 and 12.9 high-tensile structural fasteners), and ISO 9001:2015 Clause 8.4 (control of externally provided products and services), a SANY crane parts quotation is technically incomplete until the supplier documents exact part-number supersession, supply tier, included sub-components, calibration responsibility, and non-conformance claim terms against your crane's serial build. Use the 4-Gate supplier verification matrix, OEM model baseline table, physical-threshold rules-of-thumb, charter-standby risk formulas, 5-year TCO ledger, and 6-row RFQ worksheet below to audit every quote before issuing a purchase order.

Already have photos of your SANY crane superstructure PIN plate, road carrier VIN plate, LMI controller sticker, slew ring stamping, or hydraulic valve tag? Search any SANY or Tier-1 OEM code in our SANY part-number lookup, explore our SANY parts catalog, SANY machine lines we support, SANY Controllers Hub, SANY Hydraulic Pumps Hub, SANY Main Control Valves Hub, SANY Filters Hub, and SANY Seal Kits Hub, or cross-reference how to find a SANY part number, how to read a SANY nameplate, how to photograph a part for identification, and our SANY genuine vs. OEM parts verification guide.

Jump to: Quick specs: 4-Gate SANY crane parts supplier audit matrix & failure modes · OEM SANY crane model matrix (STC truck, SRC rough-terrain, SAC all-terrain & SCC crawler cranes) · Gate 1: LMI / Rated Capacity Limiter (SYMC, SYIC-II, Hirschmann iFLEX5), CANopen sensors & A2B switches · Gate 2: Slew ring bearing (42CrMo 55–62 HRC), Grade 10.9/12.9 bolt kits & EN 10204 3.1 NDT audit · Gate 3 & Gate 4: Rotation-resistant wire rope (35Wx7, ISO 4309 +1%..+3%) & Rexroth/Bucher/Sun counterbalance valves · Risk-adjusted crane charter standby cost formula, slew bolt preload math & 5-year TCO ledger · Supplier quote comparison matrix & 6-row crane parts RFQ worksheet · Common questions

How do the 4 critical subsystem verification gates and dominant failure modes govern a SANY crane parts supplier audit?

Unlike standard earthmoving wear parts, hoisting components on a SANY mobile truck crane (25 t STC250T4 to 100 t STC1000C), rough-terrain crane (40 t SRC400C to 80 t SRC800T), all-terrain crane (100 t SAC1000 to 300 t SAC3000S8), or lattice-boom crawler crane (80 t SCC800TB to 250 t SCC2500A) carry suspended overhead loads under 32.0 to 35.0 MPa (320 to 350 bar) main hydraulic pressure and 1,078 to 13,800+ kN·m overturning load moments. When a supplier ships an uncertified slewing ring, an unprogrammed LMI controller, a negative-tolerance wire rope, or an uncalibrated boom counterbalance valve, the crane cannot pass mandatory EN 13000 / ASME B30.5 third-party site lift certification.

Before comparing unit prices across competing SANY crane parts distributors, exporters, or wholesalers, audit each supplier's quotation against the 4-Gate Engineering Verification & Failure-Mode Matrix below:

Takeaway: Never evaluate a SANY crane parts quote on unit price alone—disqualify any quote that fails to document Gate 1 (LMI protocol & calibration scope), Gate 2 (EN 10204 3.1 slew ring & Grade 10.9/12.9 bolt traceability), Gate 3 (ISO 4309 +1%..+3% rotation-resistant wire rope & break-test cert), or Gate 4 (bench-tested counterbalance valves & upper PIN vs. carrier VIN separation).

How do SANY mobile truck cranes (STC), rough-terrain cranes (SRC), all-terrain cranes (SAC), and crawler cranes (SCC) differ in spare-part baselines?

SANY Hoisting Machinery manufactures seven distinct crane families—truck cranes (STC), all-terrain cranes (SAC), rough-terrain cranes (SRC), telescopic crawler cranes (SCC-TB), lattice-boom crawler cranes (SCC / SCE / SCA), tower cranes (SYM / SFT), and loader cranes (SPS). Even within the same nominal tonnage class, different series suffixes (STC800T vs. STC800T5, or SAC2200 vs. SAC2200S7) change hoist wire rope diameters (Φ20 mm vs. Φ18 mm), boom section counts, LMI controller architectures (SYMC / BCM vs. SYIC-II vs. IFM PLC), and carrier drivelines.

Compare the verified OEM engineering baselines compiled from SANY Global's official crane specification brochures below:

Takeaway: Always record the complete model code including its generation/tonnage suffix (STC800T5 vs. STC800T, SAC2200S7 vs. SAC2200, SCC1500A-6 vs. SCC1500A-1) alongside the 17-character SANY superstructure PIN—never accept a quotation written simply for "SANY 80T crane" or "SANY 150T crawler crane".

Gate 1: How do you verify SANY LMI / Rated Capacity Limiter controllers (SYMC, SYIC-II, Hirschmann iFLEX5), CAN-bus sensors, and calibration scope?

Under EN 13000:2010+A1:2014 and ASME B30.5, a mobile or crawler crane's Rated Capacity Limiter (RCL / Load Moment Indicator LMI) is a primary structural and tipping protection system. Across SANY's crane lineup, the LMI continuously computes actual suspended load moment from four live sensor inputs over a < 20 ms CAN-bus backbone:

1. Central LMI / Motion Controller & Cab Display Console:

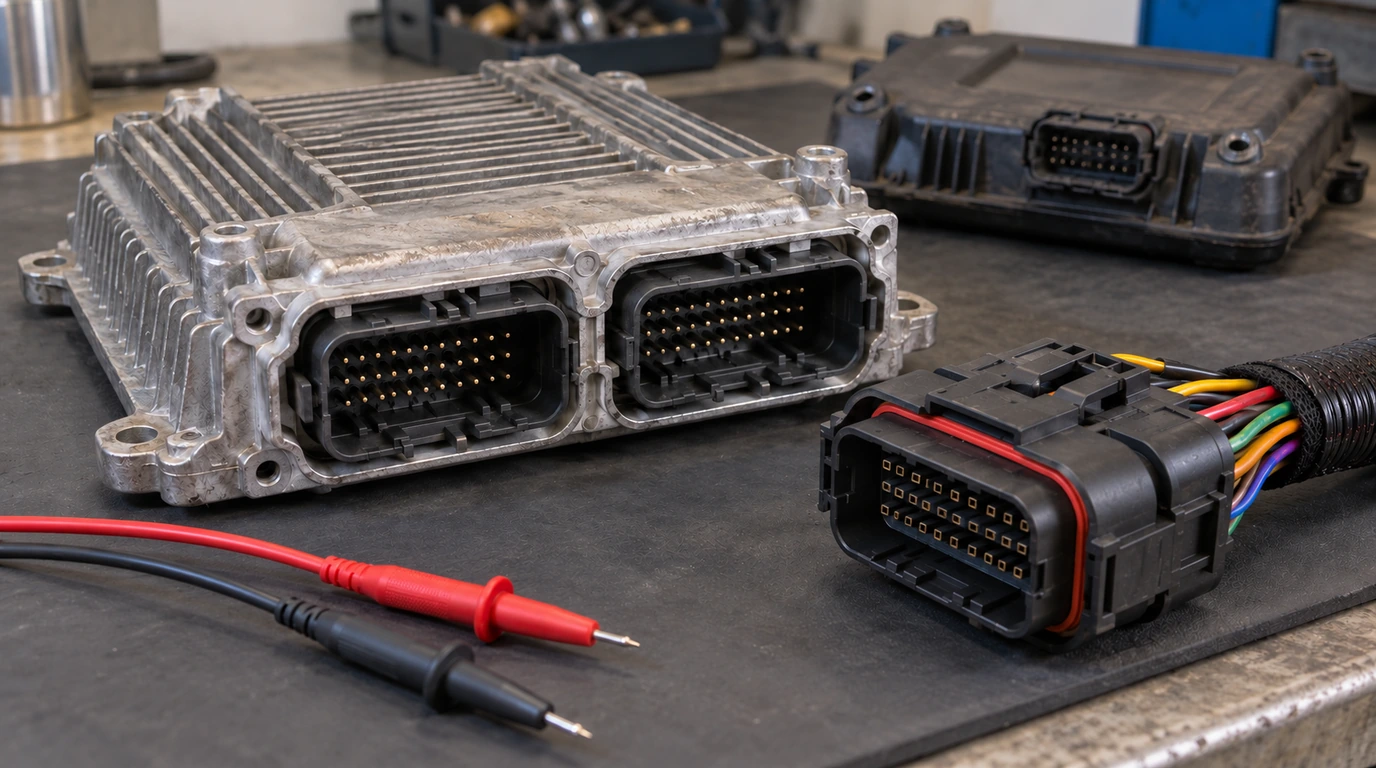

   • SANY SYMC / SYIC-II / BCM Controllers (verified catalog baselines: 140601010331A Programmable Controller, 13987636 Programmable Controller) paired with SANY 7-inch, 10.1-inch, or 10.4-inch graphic displays (11888261 Monitor Display, 11445949 Monitor Display, 13792488 Monitor Display).
   • Tier-1 Co-Supplied LMI Platforms: Hirschmann / WIKA iFLEX5 (PAT) microprocessor consoles and central units on export mobile/crawler builds, or IFM PLC controllers + Emagic displays on heavy all-terrain cranes (SAC3000S8).
2. Boom Length & Boom Angle Sensor Cable Reel: Mounted on the base boom section to measure telescopic extension length (10.8 m to 81.0 m), pinning sequence, and main boom luffing angle (-2° to +80°).
3. Luffing Cylinder Hydraulic Pressure Transducers vs. Lattice-Boom Force Load Pins:
   • Telescopic cranes (STC, SRC, SAC, SCC800TB) calculate net hook load from rod-side and piston-side pressure transducers (60217140 Hydraulic Pressure Sensor, Danfoss MBS/CAN transmitters) mounted on the luffing cylinder balance-valve manifold.
   • Lattice-boom crawler cranes (SCC1000A, SCC1500A-6, SCC2500A) measure boom-pendant tension or hoist-sheave pin shear via strain-gauge load pins.

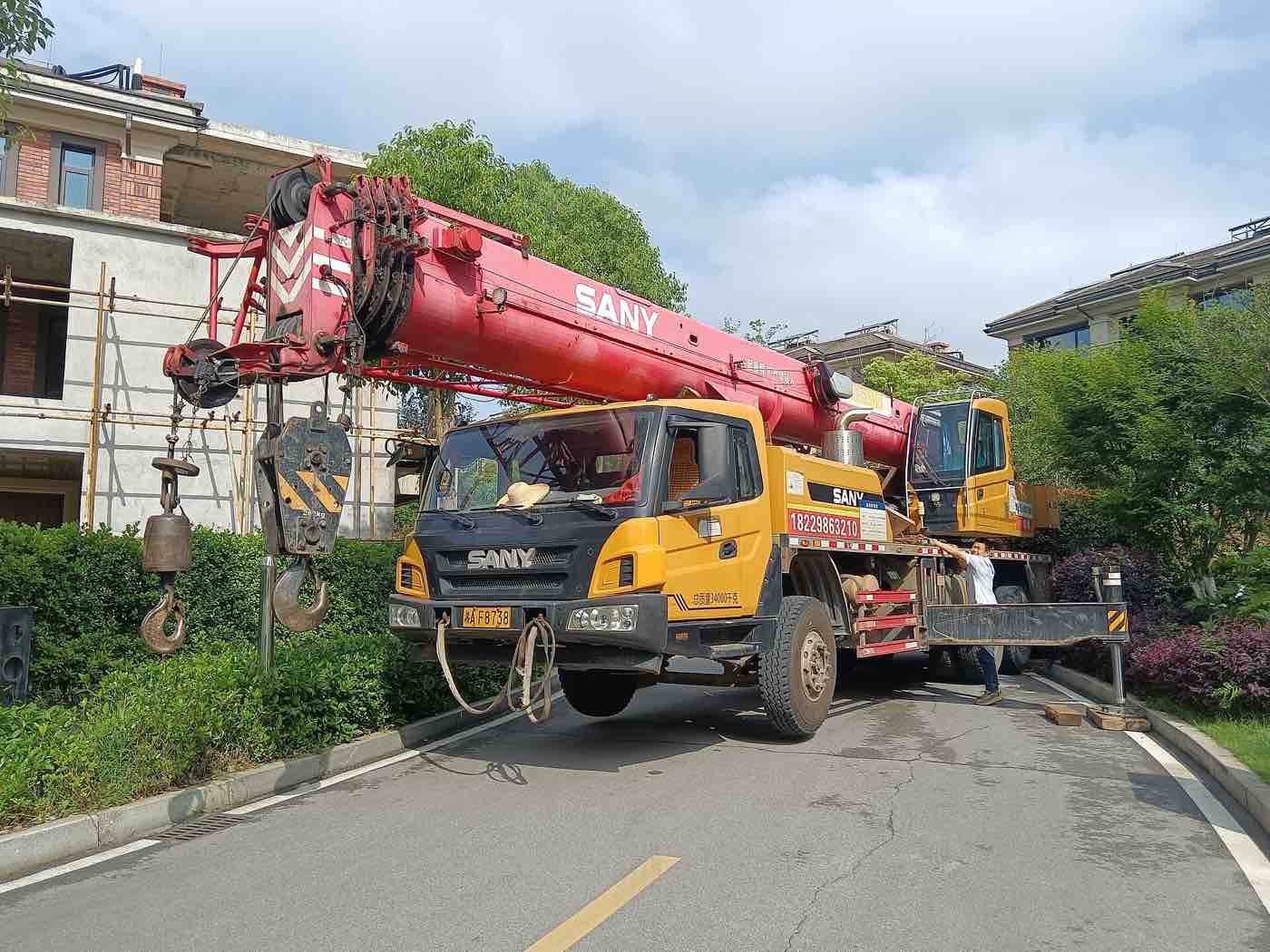

4. Anti-Two-Block (A2B) Height Limit Switch, 3rd-Wrap Winch Protector & Boom-Head Anemometer: Boom nose and jib tip A2B switches prevent pulling the hook block into the head sheaves (over-winding), while the 3-wrap drum sensor prevents paying out the rope below 3 dead wraps (over-lowering).

Takeaway: When comparing supplier quotes for Gate 1 electronic safety parts, reject any quote that writes "plug-and-play genuine LMI" without specifying who flashes the machine-specific load chart and who performs the post-installation ±3% to ±5% empty-load/rated-load calibration required by EN 13000 and ASME B30.5.

Gate 2: How do you audit SANY crane slew ring bearings (42CrMo 55–62 HRC), Grade 10.9 / 12.9 bolt kits, and EN 10204 Type 3.1 certificates?

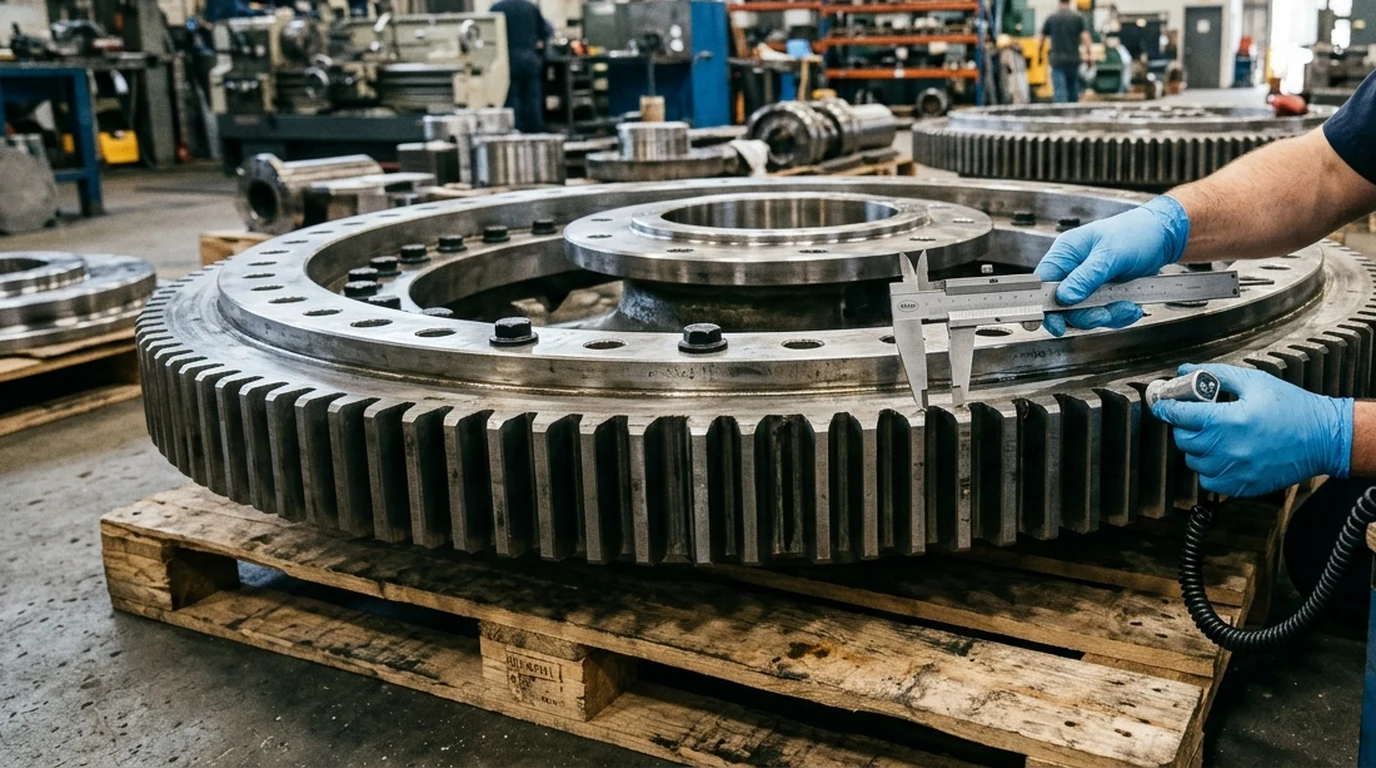

The slewing ring bearing (turntable bearing) transmits the crane's entire vertical hook load, boom dead weight, counterweight mass (5 t on STC250T4 up to 90 t on SAC3000S8 and 86 t + 25 t on SCC2500A), and dynamic overturning moment (1,078 to 13,800+ kN·m) between the rotating superstructure and the lower carrier frame or crawler carbody:

• Rolling-Element Architecture by Tonnage Class:
  • Four-Point Contact Ball or Double-Row Ball Slew Bearings: Standard on 25 t to 100 t mobile truck cranes (STC250T4, STC500C5, STC800T5) and rough-terrain cranes (SRC400C, SRC800T).
  • Three-Row Cylindrical Roller Slew Bearings (External Gear or Internal Gear): Standard on 100 t to 300 t+ all-terrain cranes (SAC1800, SAC2200S7, SAC3000S8) and lattice-boom crawler cranes (SCC1000A, SCC1500A-6, SCC2500A), where independent top axial rollers, bottom axial/anti-tilting rollers, and radial cylindrical rollers carry extreme axial and overturning moments without raceway brinelling.
• Forged Ring Metallurgy & Induction Hardening (42CrMo / 50Mn): Genuine and OEM-tier crane slew rings are forged from vacuum-degassed 42CrMo / 42CrMo4 (or 50Mn) alloy structural steel, quenched and tempered to a tough core hardness of 260 to 300 HB, with raceways CNC induction-hardened to 55 to 62 HRC (>= 3.0 to 6.0 mm effective case depth) and involute gear teeth induction-hardened to 50 to 55 HRC.

Takeaway: Always order the complete ISO 898-1 Grade 10.9 or Grade 12.9 inner and outer fastener kit (matched bolts + through-hardened heavy structural washers from a single certified heat lot) on the same quotation as the slewing ring, and verify that the supplier includes the stamped EN 10204 Type 3.1 certificate in the export document pack.

Gate 3 & Gate 4: How do you verify rotation-resistant hoist wire ropes (ISO 4309 +1% to +3%) and telescopic boom counterbalance valves?

The final two supplier audit gates cover the mechanical and hydraulic load-suspension path between the main control valve and the hook block: Gate 3 (Hoist Winch, Rotation-Resistant Wire Rope & Wet Brake Pack) and Gate 4 (Telescopic Boom / Luffing Counterbalance Valves & Outrigger Hydraulic Locks).

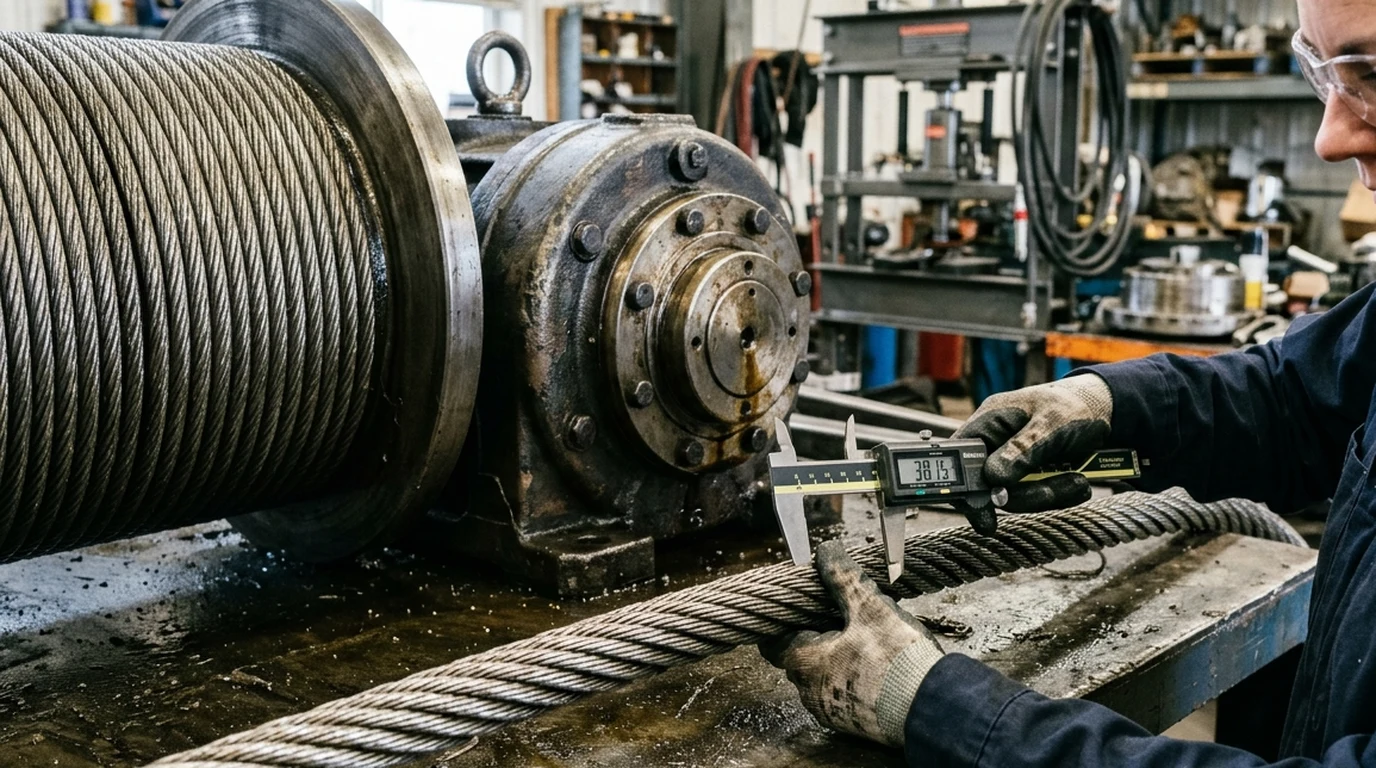

1. Gate 3: ISO 2408 / EN 12385-4 / ISO 4309 rotation-resistant wire ropes (35Wx7) & Lebus drum groove matching

SANY mobile and crawler cranes spool up to 5 to 7 layers of wire rope onto Lebus fold-line grooved winch drums (165–240 m on STC250T4–STC800T5; 410 m on SAC3000S8; 340–430 m on SCC1500A-6 / SCC2500A 596 mm / 630 mm drums). To prevent catastrophic rope twist and drum crushing, audit three parameters on every wire-rope or winch quote:

1. Rope Construction Class (ISO 4309 RCN 23 Multi-Strand Rotation-Resistant 35Wx7 / 18x7 vs. 6x36WS):
   • Main & Auxiliary Hoist Winches: Require compacted rotation-resistant (non-rotating) multi-strand wire rope—specifically 35Wx7 (35x7 Warrington-Compacted, ISO 4309 RCN 23-2 / 23-3) or 18x7 / 19x7 in 1960 N/mm² or 2160 N/mm² tensile grade, where counter-laid inner strands neutralize torque under high-lift single-line or multi-part reeving.
   • Crawler Crane Boom Hoist (Luffing) Winches (SCC1000A / SCC1500A-6 / SCC2500A): Use high-fatigue 6x36WS+IWRC or 8x36WS+IWRC compacted strand rope (Φ22 mm × 250 m on SCC2500A boom hoist; Φ22 mm × 190 m on jib hoist) because both ends of the boom-hoist reeving are fixed against rotation.
2. Controlled Positive Diameter Tolerance (+1% to +3% per ISO 4309 / EN 12385-4) & Lay Direction (sZ vs. zS):
   • Lebus fold-line winch drum grooves are CNC-machined to an exact pitch of approximately 1.05 to 1.07 × d_nom. If a supplier ships an undersized wire rope (< d_nom) or an excessively oversized rope (> +4%), the turn-back crossover zones on the 2nd through 5th layers misalign, causing the upper layer under 4.0 to 13.5 t single-line tension to knife into and crush the lower rope layers.

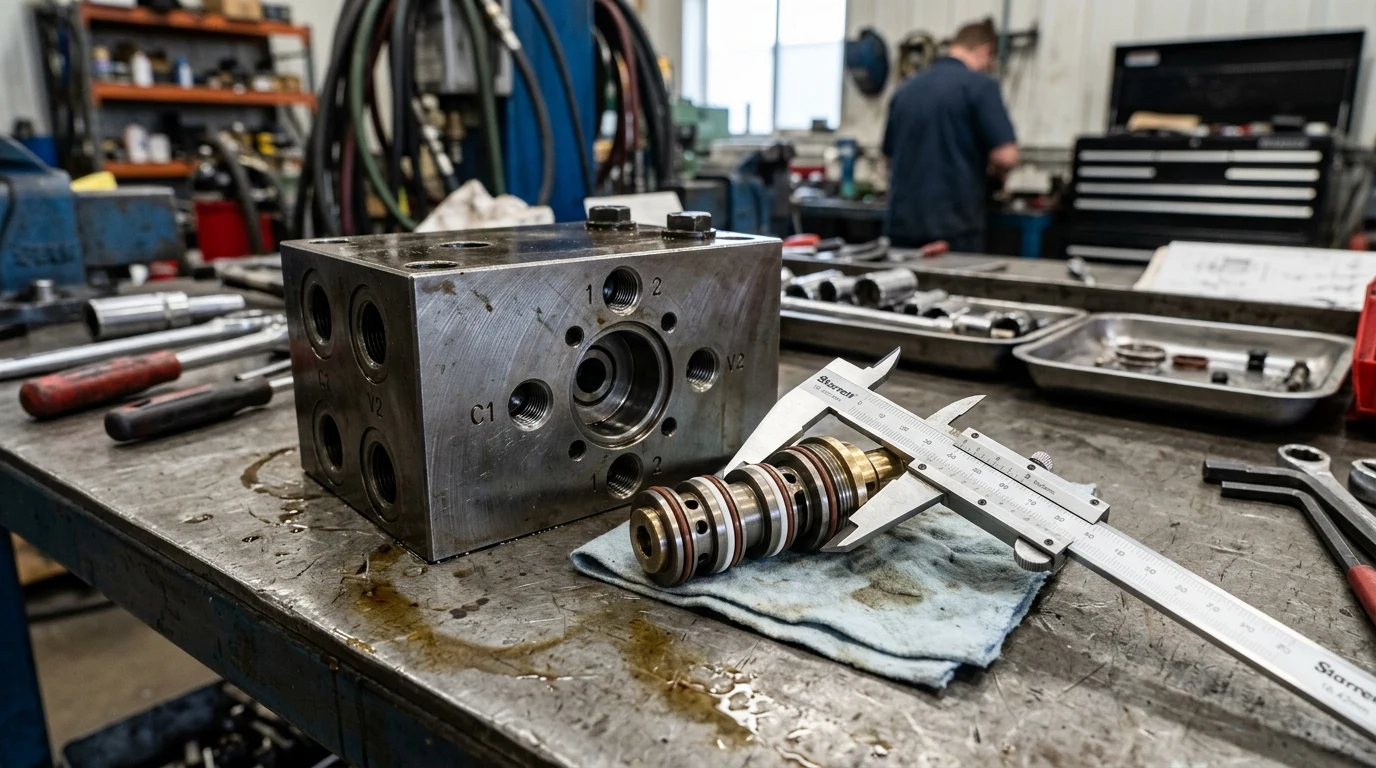

2. Gate 4: Telescopic boom, luffing & winch counterbalance valves (Rexroth / Bucher / Sun Hydraulics) & outrigger locks

Under EN 13000 and ASME B30.5, every hydraulic cylinder or motor that supports a vertical load on a SANY crane must incorporate a direct-mounted counterbalance valve (balance valve / motion control valve) or double pilot-operated hydraulic lock (two-way holding valve) bolted directly to the actuator port (with zero flexible hose between the cylinder barrel and the load-holding valve):

Takeaway: Never accept an unbranded or uncalibrated counterbalance valve for a SANY crane—insist on the stamped Rexroth / Bucher / Sun Hydraulics code and a pre-shipment 32–35 MPa bench pressure-holding test report.

How do you calculate risk-adjusted crane part procurement cost, slew bolt preload clamping force, and 5-year crane fleet TCO?

Procurement managers and crane maintenance engineers use two explicit mathematical models—plus the ISO 4309 / EN 12385-4 minimum wire-rope breaking force check—to evaluate competing supplier quotes and verify structural installation parameters: (1) the Risk-Adjusted Crane Charter Standby & Part Procurement Cost Formula (C_total), and (2) the Slew Ring Fastener Preload Clamping Force & Tightening Torque Formula (F_preload & T_bolt, ISO 898-1).

1. Quantitative crane charter downtime risk-adjusted part procurement cost formula (C_total)

When a crane is grounded on an active wind-energy, petrochemical, bridge, or port project, the purchase price of a spare part (C_part) is a fraction of the daily crane charter standby and rigging reset cost (R_crane,day). To compare a low-price, unverified broker quote (high mismatch/rejection probability P_mismatch) against a 4-Gate verified supplier quote (low mismatch probability P_mismatch), apply the Risk-Adjusted Procurement Cost Formula:

C_total = C_part + C_freight + P_mismatch * (R_crane,day * D_delay + C_rigging,reset)

where:

• C_part = Quoted unit price of the crane component or assembly ($)

• C_freight = Initial international air/sea freight and customs clearance cost ($)

• P_mismatch = Probability (0.00 to 1.00) that the shipped part is rejected on arrival due to wrong serial/generation fitment, unprogrammed LMI firmware, missing EN 10204 3.1 certification, or failed bench calibration (typically 0.25 to 0.35 for unverified grey-market brokers vs. <= 0.01 for a 4-Gate verified supplier)

• R_crane,day = Daily crane charter standby rate or replacement crane sub-hire penalty ($/day: typically $2,500–$4,500/day for 50–100 t STC / SRC cranes and $8,000–$18,000+/day for 220–300 t SAC / SCC heavy cranes)

• D_delay = Additional crane-down standby days waiting for re-sourcing, air-freight re-shipment, and customs clearance (days)

• C_rigging,reset = Lost rigging crew labor, mobile assist-crane re-mobilization, and third-party inspector re-booking fee ($)

• 1-Line Worked Arithmetic Example: For an 80 t SANY STC800T5 or SRC800T mobile crane chartered at R_crane,day = $3,800.00/day where a wrong-protocol LMI controller/sensor reel or uncertified winch part causes D_delay = 7 days of site standby ($26,600.00) plus C_rigging,reset = $3,400.00 technician/rigging reset ($30,000.00 total penalty event), Quote A from an unverified broker (C_part = $1,850.00, C_freight = $220.00, P_mismatch = 0.30) yields an expected total cost of C_total,broker = 1,850 + 220 + 0.30 * (3,800 * 7 + 3,400) = $2,070.00 + $9,000.00 = $11,070.00, whereas Quote B from a 4-Gate verified supplier (C_part = $2,350.00, C_freight = $260.00, P_mismatch = 0.01) yields C_total,verified = 2,350 + 260 + 0.01 * (3,800 * 7 + 3,400) = $2,610.00 + $300.00 = $2,910.00—demonstrating that paying $540.00 more upfront for verified traceability and pre-flashed LMI calibration saves $8,160.00 in risk-adjusted cost on a single order.

2. Slew ring fastener preload clamping force (F_preload), tightening torque (T_bolt) & wire-rope breaking load check

When installing a new 42CrMo slewing ring with a certified ISO 898-1 Grade 10.9 or Grade 12.9 fastener kit, each bolt must be tensioned to 70% of its nominal yield strength (R_p0.2) so the clamped joint remains in compression under maximum crane overturning moment:

F_preload = 0.70 * R_p0.2 * A_s and T_bolt = K * d_bolt * F_preload * 10^-3

where:

• R_p0.2 = Fastener minimum 0.2% proof/yield strength per ISO 898-1 (900 MPa for Grade 10.9; 1,100 MPa for Grade 12.9)

• A_s = Nominal tensile stress area of the metric thread (mm²; e.g., 353 mm² for M24 × 3.0, 459 mm² for M27 × 3.0, 561 mm² for M30 × 3.5, 817 mm² for M36 × 4.0)

• d_bolt = Nominal bolt outer thread diameter (mm)

• K = Nut friction torque factor (0.16 for lightly lubricated / MoS2 phosphate-coated ISO 898-1 bolts with hardened flat washers)

• 1-Line Worked Arithmetic Example: For an M30 × 3.5 ISO 898-1 Grade 10.9 slew ring mounting bolt (d_bolt = 30 mm, A_s = 561 mm², R_p0.2 = 900 MPa, lubricated nut factor K = 0.16) on a SANY STC800T5 / SRC800T / SCC1500A-6 crane, the required axial clamping preload per bolt is F_preload = 0.70 * 900 * 561 = 353,430 N (353.4 kN), requiring a calibrated hydraulic torque-wrench tightening torque of T_bolt = 0.16 * 30 * 353,430 * 10^-3 = 1,696.5 N·m (~1,700 N·m).

• Minimum Wire Rope Breaking Force Check (F_min per ISO 4309 / EN 12385-4): Before accepting a hoist wire rope certificate, verify that the certified Minimum Breaking Force (F_min, in kN) satisfies F_min >= S_max * g * Z_p, where S_max is the crane's maximum single-line pull (t), g = 9.81 m/s², and Z_p is the minimum working coefficient (>= 3.55 to 4.5 depending on mechanism classification M5–M7). For a SANY SCC1500A-6 or SCC2500A crawler crane (S_max = 13.5 t = 132.4 kN single-line pull on Φ26 mm 35Wx7 compacted rope at Z_p = 4.0), the supplier's mill certificate must prove F_min >= 132.4 * 4.0 = 529.6 kN (typical Φ26 mm 35Wx7-1960 compacted rope achieves 565–605 kN F_min).

5-year (6,000 operating hours) crane fleet TCO ledger: uncertified broker sourcing vs. 4-Gate verified supplier program

The 5-year (6,000 crane operating hours / 1,200 hours/year) Total Cost of Ownership (TCO) ledger below models spare-parts and charter-downtime expenditure for a single SANY 80 t to 150 t heavy crane (STC800T5 / SRC800T / SCC1500A-6 class) under stated reference conditions:

Also managing SANY reach stackers, concrete boom pumps, or excavators in your equipment fleet? Cross-reference this checklist with our SANY reach stacker 4-dataplate identification guide, SANY concrete pump parts ordering guide, SANY diesel engine maintenance & HPCR filter guide, and how to identify SANY filters, controllers, and seal kits.

Takeaway: Enforcing the 4-Gate supplier verification checklist (pre-flashed LMI + protocol match, EN 10204 3.1 slew ring & bolt certs, ISO 4309 +1%..+3% compacted rope, and bench-tested counterbalance valves) cuts 5-year crane parts and standby TCO from $131,900 ($21.98/hr) to $40,350 ($6.73/hr), saving $91,550 per crane.

Supplier quote comparison matrix and 6-row SANY crane parts RFQ worksheet (what to send us)

1. Side-by-side SANY crane parts supplier quote comparison matrix

When comparing two or more supplier quotations for the same SANY crane repair, fill one row per quote in the 8-Column Supplier Evidence Matrix below. As shown in the worked comparison between Quote A (Disqualified Unverified Broker) and Quote B (Qualified 4-Gate Engineering Quote), any quote that leaves supply tier, certification, calibration scope, or claim terms as "not stated" must be held out of procurement until answered in writing:

2. 6-row SANY crane parts RFQ worksheet (what to send our Changsha engineering desk)

Copy the 6-Row SANY Crane Parts Evidence Worksheet below into your quote request form or WhatsApp inquiry. If a plate character is stamped over or a subsystem does not apply (for example, Row 5: Multi-Axle Road Carrier VIN — not applicable, lattice crawler crane SCC1500A-6), write unknown, unreadable, no label, or not applicable so our engineers know the exact boundary of your file:

How our Changsha export engineering desk qualifies and documents your crane parts quote

1. You send the 6-row worksheet and straight-on dataplate/caliper photos via our quote request form, SANY part-number lookup, or WhatsApp.
2. Our engineers cross-check your SANY superstructure ISO 10261 PIN (STC, SRC, SAC, or SCC build sheet) alongside your SYMC / Hirschmann controller MCode/SVer, slew ring stamping, ISO 4309 wire rope caliper diameter, Rexroth / Bucher / Sun valve codes, and carrier VIN, confirming exact fitment within 24 hours.
3. We issue a written quotation that explicitly fills every column of your audit matrix: named supply tier (Original SANY Genuine, Tier-1 OEM Direct, or Named Supersession), included and excluded sub-components/fasteners, EN 10204 Type 3.1 / wire-rope break-load / hydraulic bench-test documentation, LMI firmware pre-flashing scope, and written return/replacement claim terms against the confirmed serial range, followed by pre-shipment QA photographs before dispatch. (Note: SANY Parts is an independent export supplier in Changsha, not SANY Group or an authorized regional dealer.)

Takeaway: Send your SANY crane's superstructure PIN, old-part tags, and the 6-row worksheet above so our Changsha engineering desk can return a fully documented, audit-ready quotation within 24 hours.

Common questions about auditing a SANY crane parts supplier, LMI calibration, slew ring certificates, and wire rope tolerances

Why is a quote that only says "Genuine SANY Crane Parts" risky without naming the exact crane family, model suffix, and supply tier?

SANY manufactures seven distinct crane families (STC truck cranes, SAC all-terrain cranes, SRC rough-terrain cranes, SCC-TB telescopic crawlers, SCC lattice crawlers, tower cranes, and loader cranes), and even models sharing the same nominal tonnage use different components across generation suffixes. For example, in the 80 t truck crane class, the STC800T5 uses a Φ18 mm × 240 m main hoist wire rope (5.84 t single-line pull), whereas the STC800T uses a Φ20 mm × 250 m main hoist wire rope (6.67 t single-line pull). Furthermore, a quote must state whether the part is Tier 1 SANY Genuine Boxed, Tier 2 Tier-1 OEM Direct (Bosch Rexroth, Hirschmann / WIKA, Bucher, Sun Hydraulics, Kessler, ZF, Dana, Cummins), or a Named Supersession Replacement, and must list all included/excluded fasteners, seals, and harnesses.

What happens if a supplier ships an unprogrammed SANY SYMC / Hirschmann iFLEX5 LMI controller or the wrong boom length-angle sensor protocol?

Under EN 13000:2010+A1:2014 and ASME B30.5, the Rated Capacity Limiter (RCL / Load Moment Indicator LMI) continuously validates CAN-bus sensor heartbeats (< 20 ms cycle time) and compares boom length, angle, radius, and cylinder/load-pin pressure against the crane's stored load chart. If a supplier ships a blank SYMC / SYIC-II controller (140601010331A, 13987636) without flashing your 17-character SANY superstructure PIN load tables—or ships a digital CANopen length-angle cable reel for a crane wired for 0–5 V analog voltage-divider input—the LMI immediately triggers a safety fault and cuts out hoist-up, telescope-out, and luff-down solenoid coils. Always verify hardware MCode, software SVer, and written calibration responsibility before ordering.

Why must I require an EN 10204 Type 3.1 certificate and ultrasonic NDT report before buying a SANY crane slewing ring or structural boom pin?

A crane slewing ring (4-point contact ball on 25–100 t STC / SRC cranes or 3-row cylindrical roller on 100–300 t SAC / SCC cranes) carries the entire overturning moment of the boom and suspended load. Genuine and OEM-spec crane slew rings are forged from 42CrMo / 42CrMo4 alloy steel (260–300 HB core toughness) with raceways induction-hardened to 55–62 HRC (>= 3.0–6.0 mm effective case depth). An EN 10204:2004 Type 3.1 inspection certificate—matched to the heat-lot number stamped on the ring rim—and an Ultrasonic Non-Destructive Testing (UT NDT) report prove that the forging has zero internal laminations and meets core/raceway hardness specs. Always replace 100% of the inner and outer ISO 898-1 Grade 10.9 or Grade 12.9 mounting bolts (F_preload = 0.70 * R_p0.2 * A_s) as a single batch whenever replacing a slew ring.

How do I verify that a replacement hoist wire rope fits my SANY crane's Lebus grooved winch drum?

Check four mandatory specifications against ISO 2408, EN 12385-4, and ISO 4309:2017 before dispatch: (1) Rotation-resistant compacted construction (35Wx7 or 18x7 multi-strand rotation-resistant rope for main and auxiliary hoist winches so the hook block does not spin or birdcage under high-lift reeving; 6x36WS+IWRC is used only on fixed-end crawler boom/jib luffing winches), (2) Lay direction (sZ right-hand ordinary lay vs. zS left-hand ordinary lay matched to your drum anchor wedge), (3) Caliper-verified actual millimeter diameter within the +1% to +3% positive tolerance window (matched to your Lebus drum groove pitch across Φ16 mm, Φ18 mm, Φ20 mm, Φ22 mm, or Φ26 mm), and (4) a factory destruct/break-load test certificate confirming Minimum Breaking Force (F_min >= S_max * g * Z_p).

Why do SANY mobile and all-terrain cranes have both a superstructure PIN plate and a road carrier VIN plate?

Wheeled SANY cranes (STC truck cranes and SAC all-terrain cranes) combine two separately serialized assemblies: (1) the SANY rotating crane superstructure (governed by the 17-character ISO 10261 PIN plate mounted on the slewing frame/operator cab, which locks the boom, winches, slew ring, LMI, and 32–35 MPa upper hydraulics), and (2) the multi-axle road carrier chassis (governed by the 17-character road VIN plate plus Tier-1 powertrain tags for the DF Cummins / Mercedes-Benz OM460LA engine ESN, FAST / ZF 12-speed AMT transmission, and Kessler / Fangsheng drive-steer axles). Recording both plates separately ensures road-chassis brake, suspension, and driveline parts are never confused with upper hoisting components.

Methodology, standards, and sources

• International crane safety, wire rope, fastener, and quality standards referenced: Mobile and crawler crane operational safety aids, Rated Capacity Limiter (RCL / LMI) overload motion cutouts, Anti-Two-Block (A2B) height limiters, 3rd-wrap winch drum protectors, and hydraulic load-holding valve requirements follow EN 13000:2010+A1:2014 (Cranes — Mobile cranes) and ASME B30.5 (Mobile and Locomotive Cranes). Stranded steel hoist wire rope manufacturing, rotation-resistant compacted strand classification (ISO 4309 RCN 23 35Wx7 / 18x7), controlled positive diameter tolerances (+1% to +3%), inspection/discard criteria, and Minimum Breaking Force (F_min) verification follow ISO 2408, EN 12385-4, and ISO 4309:2017. Metallic material chemical/mechanical inspection certificates (Type 3.1) for 42CrMo induction-hardened slewing rings (55–62 HRC) and structural pins follow EN 10204:2004. High-strength structural slewing bolt property classes (Grade 10.9 at R_p0.2 = 900 MPa and Grade 12.9 at R_p0.2 = 1,100 MPa) follow ISO 898-1. External supplier evaluation follows ISO 9001:2015 Clause 8.4, and 17-character superstructure Product Identification Number (PIN) serialization follows ISO 10261:2021.
• OEM crane brochures and catalog baselines: SANY model parameters across mobile truck cranes (STC250T4, STC500C5 / STC500, STC800T5 / STC800T, STC900T / STC1000C), rough-terrain cranes (SRC400C, SRC500T / SRC550C, SRC800T), all-terrain cranes (SAC1800, SAC2200 / SAC2200S7, SAC3000S8), and lattice/telescopic crawler cranes (SCC800TB, SCC1000A, SCC1500A-6, SCC2500A) are compiled from the SANY Global Crane Product Directory, official SANY Crane technical specification brochures (Sany_crane-brochure_STC250T4-150858.pdf, Sany-brochure-STC500C5-LHD-20260130-EN-CN_043404.pdf, Sany-brochure-STC800T5-Middle-East-20250603-EN-CN_215118.pdf, Sany_crane-brochure_SRC400C-083337.pdf, Sany-brochure-SRC800T-20260312-EN-CN_161215.pdf, Sany_crane-broc-093931.pdf SAC1800, Sany_crane-brochure_SAC2200S7.pdf, Sany_crane-brochure_SAC3000S8.pdf, Sany_crane-brochure_SCC1500A-6_095236.pdf, and Sany_crane-brochure_SCC2500A_152840.pdf), SANY Global Parts & Service Support, and sanyparts.net verified catalog baselines (140601010331A, 13987636, 11888261, 11445949, 13792488, 60217140, KDRDE5K-31/30C50-140-T, 150401030038B, 151501000071A, 60200365, 60114999, 60210758, B260409000279K, verified October 2026).
• Verification scope: Published catalog capacities, wire rope dimensions, bolt preload values, and 5-year TCO figures represent standard engineering baselines under stated reference conditions. Because SANY crane configurations vary by regional market build, boom/jib combination, and serial range, always submit your superstructure PIN, carrier VIN, and component dataplate photos for pre-shipment verification before ordering.
