SANY Concrete Pump Parts: S-Valve, Pipe & Hydraulic ID Guide

Ordering SANY concrete pump parts by nominal boom reach ("SANY 37m / 47m / 56m / 62m pump") or trailer prefix ("HBT60 / HBT80") alone—without separating the 4 independent mechanical ownership zones and verifying the C8, C10, or S-series generation suffix—leads to wrong-bore spectacle wear plates (DN200 vs. DN230 vs. DN260), incompatible 38CrMoAl S-tube spline tooth counts (21T vs. 24T vs. 26T), mismatched concrete delivery cylinder strokes (1,600 mm vs. 1,900 mm vs. 2,100 mm), and wrong-displacement Bosch Rexroth hydraulic main pumps, triggering mid-pour cold-joint concrete dumps and air-freight re-shipment delays that cost $12,500 to $25,000+ per incident. Across SANY truck-mounted concrete boom pumps—including SYG5230THB 370C-10 / SYM5230THB (37m), SYG5231THB 370C-8 (37m), SYG5310THB 430C-10 (43m), SYG5360THB 470C-10 / SYM5310THB (47m), SYM5445THB 560C-8 / SYG5460THB 560C-10 / SYM5419THB (56m), and SYG5521THB 630S / SYM5532THB (62m)—as well as stationary trailer/line pumps (HBT6013C-5S / HBT6016C-5S (HBT60C), HBT8018C-5S (HBT80C), and ultra-high-pressure HBT9028CH-5S (HBT90CH)), accurate procurement requires matching your SANY ISO 10261 superstructure PIN, caliper-verified S-valve & cylinder bore/stroke, DN125 pipeline flange geometry (DIN 24118 SK 148 mm vs. ZX), and riveted Bosch Rexroth A11VO190 / A11VO260 + Stiebel / ZF transfer case (PTO) dataplates before dispatch.

Engineering boundary and international standards summary: Under EN 12001:2012 (Conveying, spraying and placing machines for concrete and mortar — Safety requirements), ASME B30.27 (Material Placement Systems — mandatory >= 2:1 pipeline burst-to-working pressure safety factor, requiring >= 240–260 bar burst rating on 120–130 bar high-pressure boom pumps), DIN 24118 concrete pipe flange standards (DN125 high-pressure 5.5-inch / 148 mm SK collar with 62–65 HRC Twin-Wall Cr-alloy liner), and ISO 10261:2021 17-character machine PIN serialization, a SANY concrete pump parts inquiry must never mix commercial truck chassis parts (VIN) with SANY pumping superstructure wear kits or Tier-1 hydraulic drivetrain sub-assemblies. Use the 4-zone failure-mode matrix, OEM model configuration baseline, S-valve & cylinder metrology guide, volumetric wear-life & cold-joint penalty formulas, 5-year TCO ledger, and 6-row evidence worksheet below to eliminate wrong-part shipments.

Already have photos of your SANY concrete pump superstructure plate, S-valve wear plate, delivery cylinder, or Rexroth hydraulic pump tag? Search any SANY or OEM number in our SANY part-number lookup, browse the SANY parts catalog, SANY machine lines we support, SANY Hydraulic Pumps Hub, SANY Main Control Valves Hub, SANY Filters Hub, SANY Seal Kits Hub, and SANY Controllers Hub, or review how to find a SANY part number, how to read a SANY nameplate, and how to photograph a part for identification.

Jump to: Quick specs: 4 concrete pump ownership zones & dominant failure modes · SANY 37m–62m boom pump (C8 / C10 / S) & HBT60C–90CH trailer pump OEM matrix · Hopper S-valve wear group (DN200 / DN230 / DN260 tungsten-carbide plate, cutting ring & spline) · Concrete delivery cylinder, PU ram piston & DN125 twin-wall boom pipe UT inspection · Rexroth A11VO190 / A11VO260 main pump, Stiebel/ZF PTO & regional support boundary · Volumetric wear-life math, mid-pour cold-joint penalty formula & 5-year TCO ledger · 6-row concrete-pump evidence worksheet & what to send us · Common questions

How do the 4 subsystem ownership zones and dominant failure modes divide a SANY concrete pump parts order?

A truck-mounted SANY concrete boom pump (16,660 kg on a 37m SYG5231THB 370C-8 up to 43,600 kg on a 56m SYM5445THB 560C-8 and 46,000+ kg on a 62m SYG5521THB 630S) or stationary trailer pump (6,800 to 11,910 kg across HBT6016C-5S to HBT9028CH-5S) operates as a high-pressure positive-displacement slurry conveyor driven by a 32 MPa (320 bar) open hydraulic loop. When a downstream aggregate plug occurs, concrete line pressure spikes instantaneously to 12.0–13.0 MPa (120–130 bar) on boom pumps and up to 18.0–28.0 MPa (180–280 bar) on ultra-high-pressure trailer pumps (HBT8018C-5S / HBT9028CH-5S).

Before requesting a quote, assign every component to its exact subsystem ownership zone in the engineering baseline table below:

Takeaway: Never submit a generic request for "SANY concrete pump parts"—assign the part to Zone 1 (S-Valve Hopper Wear), Zone 2 (Delivery Cylinder & Piston), Zone 3 (DN125 Pipeline), or Zone 4 (Main Hydraulic Loop / PTO vs. Truck Carrier VIN) first.

How do SANY 37m, 43m, 47m, 56m, and 62m boom pumps (C8 vs. C10 vs. S-series) and HBT60C / HBT80C / HBT90CH trailer pumps differ?

SANY Concrete Machinery divides its global equipment catalog into distinct families—truck-mounted concrete boom pumps, stationary trailer pumps, truck-mounted line pumps, placing booms, truck mixers, and batching plants. Even within truck-mounted boom pumps and trailer pumps, the nominal boom meter class (37m, 47m, 56m, 62m) does not lock the pumping cylinder stroke or S-valve geometry.

Across SANY's C8, C10, and S-series generation transitions, SANY changed concrete delivery cylinder stroke lengths (2,100 mm vs. 1,900 mm), maximum stroke rates (29 vs. 33 strokes/min), hydraulic oil tank capacities (300 L vs. 680 L vs. 450+450 L), and carrier chassis pairings. Compare the verified OEM engineering baselines from SANY Global's official model brochures:

Takeaway: Never truncate a SANY model code to "SANY 56m" or "HBT60": as the table proves, a SYM5445THB 560C-8 (C8) uses a 260 × 2,100 mm delivery cylinder, whereas a SYG5460THB 560C-10 (C10) in the exact same 56m class uses a 260 × 1,900 mm delivery cylinder.

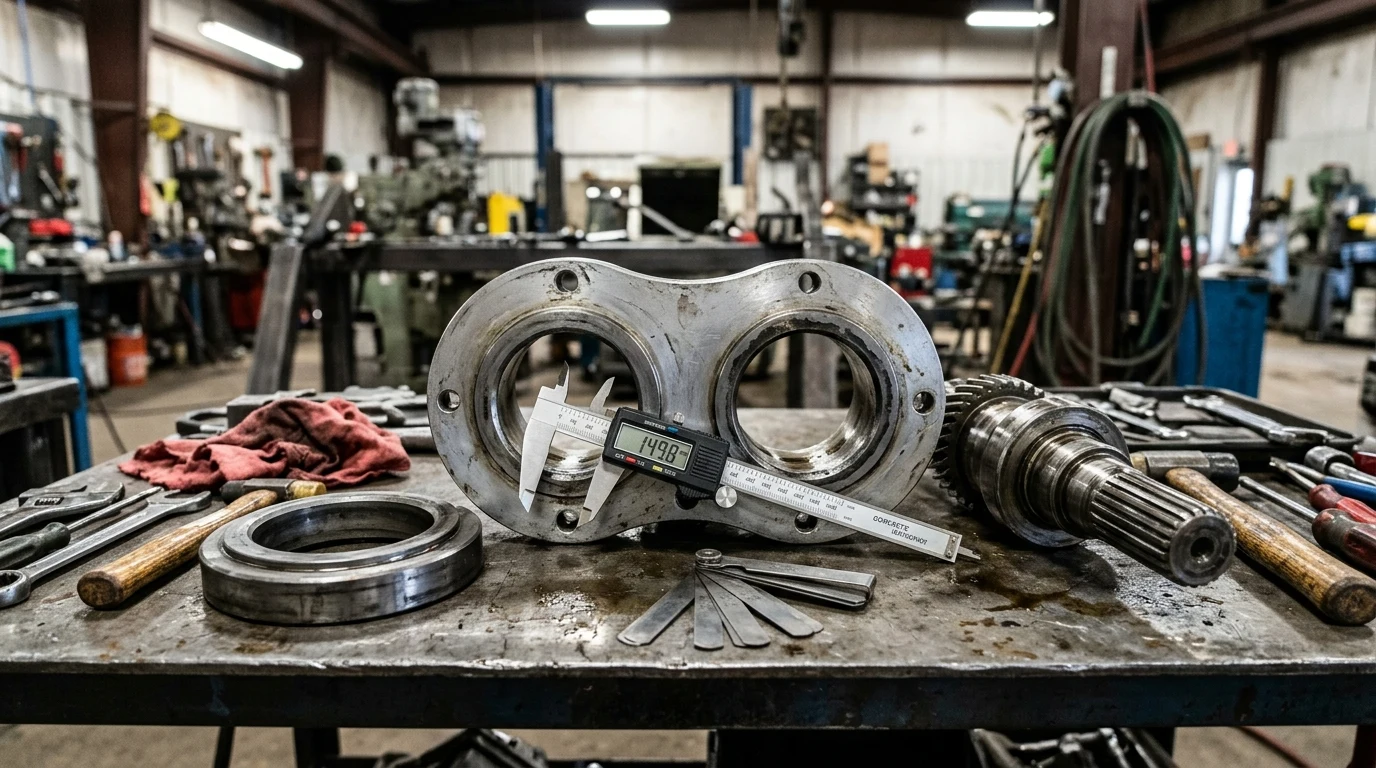

How do you measure and order SANY S-valve hopper wear parts (DN200, DN230, DN260 tungsten-carbide spectacle plates, cutting rings, and S-tube splines)?

The rear concrete hopper S-valve assembly experiences the most severe three-body sliding abrasion and cyclic impact shock on the machine. On every stroke reversal (19 to 33 times per minute), dual hydraulic slewing plunger cylinders swing the S-tube (S-valve) across the two ports of the spectacle wear plate (glasses plate), while the spring-effect rubber thrust backing ring and concrete back-pressure press the floating cutting ring (wear ring) against the spectacle plate face to seal 7.0 to 28.0 MPa (70 to 280 bar) of concrete pressure.

1. Hard-faced alloy (58–62 HRC) vs. vacuum-brazed tungsten-carbide (WC-Co >= 85 HRA) wear kits

SANY supplies hopper wear plates and cutting rings in two primary metallurgical grades matched to aggregate abrasiveness:

• Standard Hard-Faced Overlay Grade (42CrMo structural base with high-chromium carbide weld overlay, 58–62 HRC): Engineered for standard ready-mix river-gravel concrete (<= 8 MPa low-pressure pumping). Baseline reference service life is 15,000 to 25,000 m³.
• Vacuum-Brazed / PTA Tungsten-Carbide Inlaid Grade (WC-Co sintered carbide tiles vacuum-brazed into the high-velocity inner ring and figure-8 bridge of a 42CrMo forging, >= 85 to 88 HRA / equivalent 68–72 HRC): Engineered for crushed granite, basalt, quartz sand, and high-rise 12–28 MPa high-pressure pumping (SANY G5 Sino-German wear technology). Baseline reference service life reaches 30,000 to 50,000+ m³ under reference C30/C35 concrete.

Takeaway: Always order S-valve wear components as a complete matched kit (spectacle plate + cutting ring + rubber backing ring + S-tube trunnion seal kit) verified against your DN200 / DN230 / DN260 bore and C8 / C10 / S-series spline count.

How do you inspect and specify SANY concrete delivery cylinders, polyurethane ram pistons, and DN125 twin-wall boom pipes?

Downstream and upstream of the S-valve sit the two component groups that govern volumetric pumping efficiency and overhead jobsite structural safety under EN 12001:2012, ASME B30.27, and DIN 24118: (1) the twin hard-chrome concrete delivery cylinders and concrete ram pistons, and (2) the overhead DN125 boom and deck delivery pipeline.

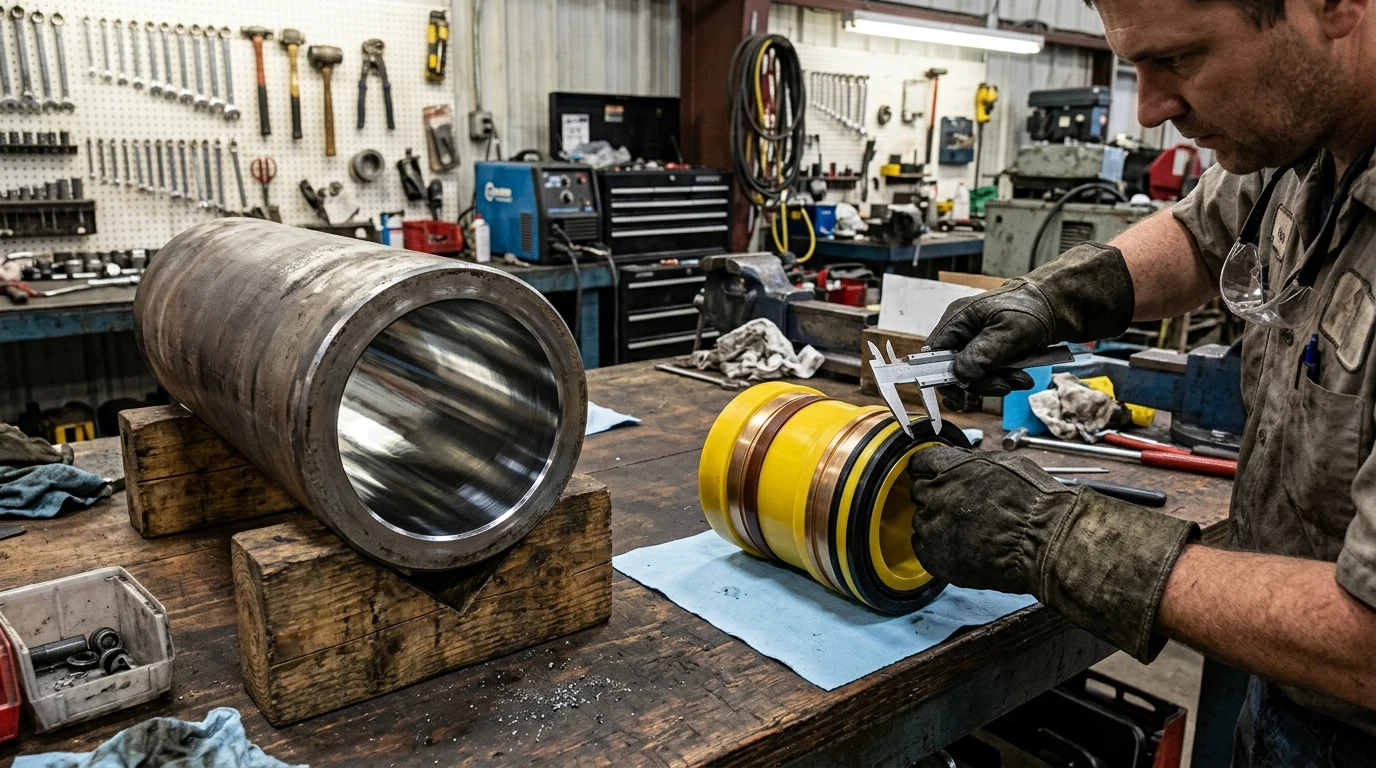

1. Concrete delivery cylinders (HV 900+ hard chrome) & integrated vs. separable PU ram pistons

Each SANY pumping unit uses two main hydraulic drive cylinders coupled across a central water flushing box (washing room) to two hard-chrome plated concrete delivery cylinders (0.15 to 0.25 mm micro-cracked hard-chrome bore plating at >= 900 HV hardness):

• Integrated vs. Separable Concrete Ram Pistons:
  • Integrated Polyurethane (PU) Pistons (verified SANY baselines: 12724859 for DN200, 12724866 for DN230, 12708591 for DN260): Molded 90–95 Shore A polyether/polyester polyurethane elastomer bonded to a forged steel core with a bronze or phenolic/PTFE guide wear ring. Engineered for high-pressure (12–28 MPa), high-temperature (up to 80–90°C hydration/friction heat), and abrasive crushed-aggregate mixes (15,000 to 25,000+ m³ typical service life).
  • Separable Rubber (NBR) Pistons: Replaceable vulcanized nitrile rubber sealing cup bolted onto a reusable steel piston flange adapter. Lower unit cost for low-pressure (<= 8 MPa) trailer/short-boom duty, but faster lip extrusion under high pressure (8,000 to 12,000 m³ typical life).

2. Overhead DN125 boom delivery pipes & elbows: Twin-Wall 62–65 HRC vs. single-wall ST52 (EN 12001 & ASME B30.27)

Every SANY 37m to 62m+ boom pump routes concrete overhead through a 125 mm (DN125 / 5-inch) boom pipeline terminating in a 3 m × 125 mm textile/steel-braided rubber end hose. Under EN 12001:2012 and ASME B30.27, overhead boom pipes and elbows must satisfy two strict mechanical invariants:

1. Mandatory >= 2:1 Burst-to-Working Pressure Safety Factor (ASME B30.27): On a SANY boom pump capable of 12.0 to 13.0 MPa (120 to 130 bar) concrete delivery pressure in high-pressure mode, new delivery pipes, elbows, and forged couplings must provide a minimum burst pressure rating of >= 24.0 to 26.0 MPa (240 to 260 bar).
2. DIN 24118 High-Pressure Flange Collar Geometry (SK 125 / 148 mm vs. ZX 125): Standard SANY boom pipes use DN125 (133 mm OD) tubing fitted with hardened SK 125 (5.5-inch / 148 mm outer flange diameter) twin-ribbed collars sealed by A-type concave rubber gaskets and forged quick-release snap clamps (or heavy male/female ZX flanges on ultra-high-pressure riser lines).
3. Bi-Metallic Twin-Wall (62–65 HRC) vs. Single-Wall ST52 / 20# Construction:
   • Single-Wall ST52 / 20# Carbon Steel (4.5 to 5.0 mm wall): Acceptable only on flat ground-level trailer/line pump runs (15,000 to 20,000 m³ service life); too heavy in thick-wall form and too rapid-wearing for overhead placing booms.
   • Twin-Wall Bi-Metallic Boom Pipe & Elbows (4.5 mm or 5.5 mm composite wall: 2.5–3.0 mm inner high-chromium alloy Cr26 / Cr28 or induction-quenched 65Mn liner hardened to 62–65 HRC metallurgically bonded inside a 2.0–2.5 mm ductile ST52 / Q235B / 37Mn5 outer structural steel shell): Combines extreme inner abrasion resistance (35,000 to 60,000+ m³ straight-pipe life; 25,000 to 40,000 m³ on Cr28 double-layer cast elbows) with a shatter-resistant ductile outer shell that prevents brittle fragmentation under pressure spikes while keeping boom dead-weight within load-moment limits.

Takeaway: Specify DN125 (SK 148 mm flange) Twin-Wall 62–65 HRC pipes and double-layer Cr28 elbows for all overhead boom sections, and log 5,000 m³ UT thickness readings to replace bends before reaching the 1.8–2.0 mm minimum wall threshold.

How do you verify Bosch Rexroth A11VO190 / A11VO260 main hydraulic pumps, Stiebel / ZF transfer cases (PTO), and regional Americas support channels?

While concrete wear parts (Zone 1–3) follow the SANY pumping unit's bore and pipeline geometry, the 32 MPa (320 bar) open hydraulic drive loop (Zone 4) and the commercial road truck carrier (VIN) rely on Tier-1 sub-vendor dataplates and regional distribution boundaries.

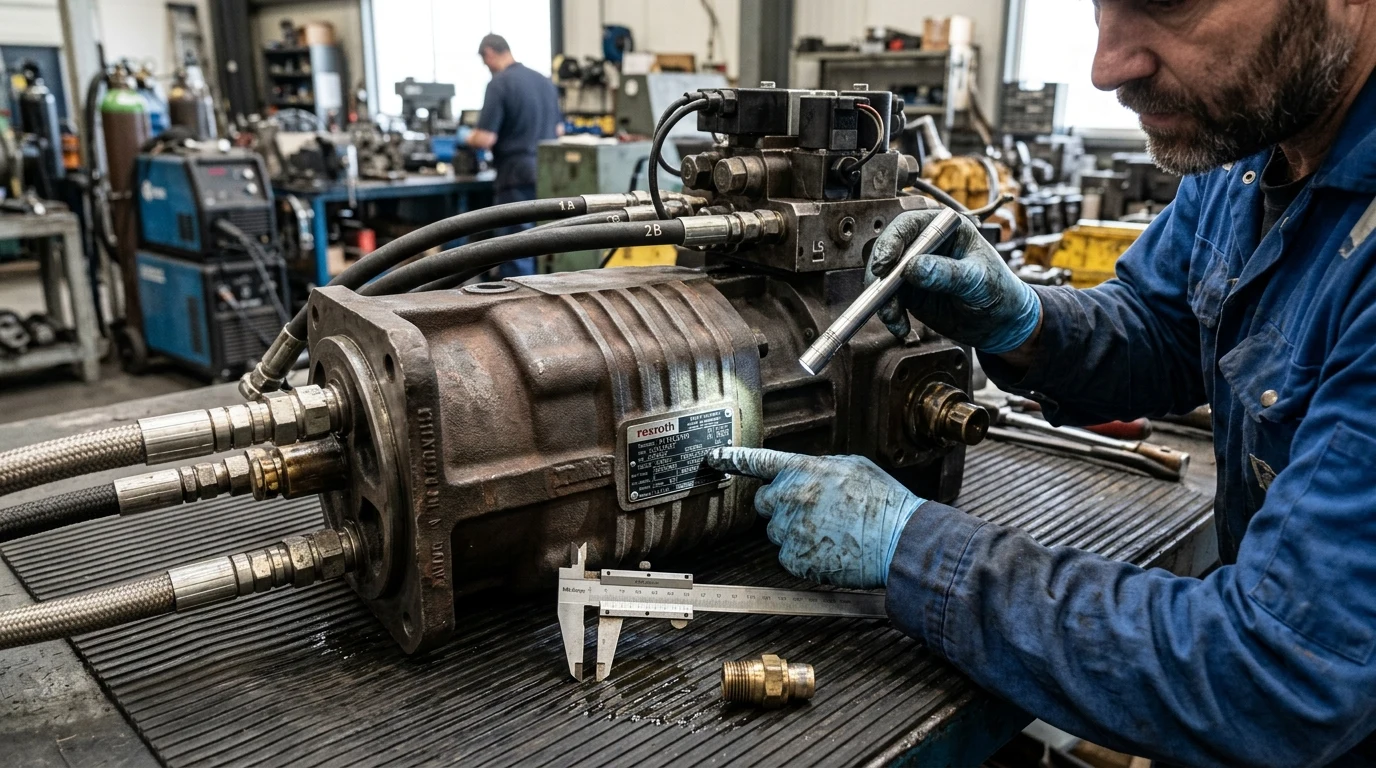

1. Reading the Bosch Rexroth A11VO190 / A11VO260 main pump tag and Stiebel / ZF transfer case (PTO) tag

To quote a complete hydraulic pump, a brass rotary group (cylinder block, 9-piston slipper assembly, spherical valve plate, swashplate cradle bearings), a proportional regulator, or a transfer-case gear set, transcribe these two riveted sub-vendor tags:

1. Main Hydraulic Pump Tag (Bosch Rexroth A11VO190 / A11VO260 or Kawasaki K3V140DT / K3V180DT):
   • Where to find it: Riveted to the cast-iron pump housing flank above the SAE high-pressure discharge flange, directly aft of the driveline transfer case.
   • What to record:
     • 10-Digit Bosch Rexroth Material Number (MNR: R902xxxxxx) and 8-to-13-Character SANY Part Number if co-stamped on the tag.
     • Complete Type Designation Code (e.g., A11VO190LRDS/11R-NZD12K83 or A11VO260LRDH2/11R-NZD12K02):
       • 190 vs. 260: Geometric displacement (190 cm³/rev on 37m–43m / mid-output units vs. 260 cm³/rev on 47m–62m high-output units).
       • LRDS vs. LRDH2: Hyperbolic power control (LR) + pressure cut-off (D) + load-sensing (S) vs. hydraulic stroke control (H2).
       • R vs. L: Direction of shaft rotation viewed from the drive shaft end (critical on dual-pump PTO splitters where left and right pumps may carry opposite rotation or different through-drive rear flanges K01 / K02 / K83 for the boom/agitator tandem pump!).
2. Driveline Transfer Case / Splitter Gearbox (PTO) Tag (Stiebel 4318 / 4395 or ZF / SANY):
   • Where to find it: Riveted to the aluminum/cast-iron splitter gearbox housing mounted mid-ship in the truck chassis frame between the road transmission output shaft and the rear tandem drive axles.
   • What to record: Maker (Stiebel, ZF, or SANY), Model & Spec/BOM Number, Serial Number, Step-Up Gear Ratio (i, e.g., 1:0.78 or 1:0.89), and pneumatic shift cylinder / magnetic PTO engagement switch part number.

2. Regional market plates and the Putzmeister America (SY32–SY68 US) support boundary

When reading your concrete pump's riveted machine plate, always transcribe the regional suffix in parentheses—such as (SZ-EU), (SZ-AM), (SZ-IN), (SZ-NZ), (SZ-LA), (SZ-TU), (SZ-RU), or US:

• North American SY-US Series (Putzmeister America Support Collaboration): Starting in February 2020 (initial rollout late 2019), Putzmeister America, Inc. collaborated with its parent company, Sany Group, to distribute and support a dedicated Americas lineup of SANY truck-mounted boom pumps: SY32 Z5-200 US (31.6 m / 103'8"), SY39 RZ5-200 US (38.1 m / 125'), SY47 RZ5-200 US (47.0 m / 154'2"), SY56 RZ6-200 US (56.0 m / 183'7"), and SY68 RZR6-200 US (67.3 m / 220'10").
• Non-Interchangeability Invariant: While Putzmeister America provides regional Americas sales, parts, and service support for those specific SY-US models, a Putzmeister machine part number (Putzmeister BSF / BSA series) does not automatically interchange with a SANY SYM / SYG / HBT part number. Putzmeister and SANY use different S-tube shaft splines, different spectacle plate bolt patterns (Putzmeister Duro-22 vs. SANY DN230 / DN260), and different ZX vs. SK boom pipe flange lengths. Never relabel a removed Putzmeister component as a SANY part, and never omit the regional suffix (SZ-EU, SZ-AM, US) from your inquiry.

Takeaway: Keep your road truck carrier (VIN), SANY superstructure (PIN + regional/generation suffix), Bosch Rexroth / Stiebel PTO hydraulic tags, and Putzmeister US vs. SANY Global identity strictly separated on your order sheet.

How do you calculate concrete wear-part volumetric service life, mid-pour cold-joint penalty cost, and 5-year concrete pump TCO?

Fleet maintenance engineers use two explicit mathematical models—plus the ASME B30.27 / EN 12001 burst-wall equation—to schedule wear-kit replacements before a mid-pour breakdown and to quantify the financial risk of unverified ordering: (1) the Concrete Wear-Part Volumetric Service Life Formula (V_life,m3), and (2) the Mid-Pour Cold-Joint Concrete Dump & Wrong-Generation Air-Freight Penalty Formula (C_pour_loss).

1. Quantitative concrete wear-part volumetric service life (V_life,m3) & theoretical displacement check

Published catalog wear-life ratings (such as 35,000 m³ for a vacuum-brazed tungsten-carbide DN230 / DN260 spectacle wear plate & cutting ring kit, or 45,000 m³ for a DN125 twin-wall 62–65 HRC straight boom pipe) represent Standard Engineering Baselines under Reference Conditions (C30 river-gravel concrete at 160–200 mm slump in 7.0–8.3 MPa low-pressure mode). To calculate actual field replacement volume (V_life,m3, in cubic meters of concrete pumped) under your jobsite mix and pressure conditions, apply the three-factor derating equation:

V_life,m3 = V_base,m3 * k_slump * k_agg * k_pressure

where:

• V_base,m3 = Reference catalog volumetric service life under standard river-gravel C30 mix (35,000 m³ for tungsten-carbide spectacle plate & cutting ring kit; 20,000 m³ for PU concrete ram pistons; 45,000 m³ for DN125 twin-wall straight boom pipe; 28,000 m³ for Cr28 double-layer boom elbows)

• k_slump = Concrete slump workability factor (1.00 for high-workability 160–220 mm slump; 0.88 for medium 120–155 mm slump; 0.78 for stiff < 120 mm low-slump mix)

• k_agg = Coarse aggregate quartz/silica abrasiveness factor (1.00 for rounded natural river gravel; 0.85 for crushed limestone; 0.72 for angular crushed granite, basalt, or high-silica manufactured sand)

• k_pressure = Pumping pressure mode factor (1.00 in low-pressure 7.0–8.3 MPa high-volume mode; 0.75 in high-pressure 12.0–13.0 MPa boom mode; 0.58 in 18.0–28.0 MPa ultra-high-pressure trailer mode on HBT8018C / HBT9028CH)

• 1-Line Worked Arithmetic Example: For a SANY SYG5360THB 470C-10 (47m, DN260 × 1,900 mm) pumping angular crushed-granite concrete (k_agg = 0.72) at a stiff 110 mm slump (k_slump = 0.78) in 12 MPa high-pressure mode (k_pressure = 0.75) using a vacuum-brazed tungsten-carbide spectacle wear plate & cutting ring kit (12830900 + 13149385) rated at V_base,m3 = 35,000 m³, the field volumetric service life is V_life,m3 = 35,000 * 0.78 * 0.72 * 0.75 = 14,742 m³—confirming why high-pressure crushed-granite fleets must check the 1.5–2.0 mm axial slurry gap every 2,500 m³ and stage a replacement carbide kit at 14,500 m³.

• Theoretical Cylinder Displacement Verification (Q_theo): To verify whether a 56m boom pump houses a C8 (2,100 mm stroke at 29 strokes/min) or C10 (1,900 mm stroke at 33 strokes/min) DN260 (260 mm bore) pumping unit, apply Q_theo = (pi / 4) * D_bore^2 * L_stroke * n_strokes * 60 * 10^-9: for SYG5460THB 560C-10, single-stroke cylinder volume is (3.1416 / 4) * 260^2 * 1,900 * 10^-9 = 0.10088 m³/stroke, yielding Q_theo = 0.10088 * 33 * 60 = 199.7 m³/h (200 m³/h published LP rating).

2. Mid-pour cold-joint concrete dump & wrong-generation air-freight penalty formula (C_pour_loss) + ASME B30.27 minimum wall check

When an uninspected single-wall boom elbow bursts overhead (< 1.8 mm wall) or a worn S-valve trunnion seizes mid-pour—and the maintenance store discovers that the spare wear kit or delivery cylinder on the shelf was ordered by meter class ("SANY 56m") rather than generation (C8 vs. C10)—the single-incident financial loss (C_pour_loss, in USD) is governed by:

C_pour_loss = (N_mixers * V_mixer * C_concrete/m3) + C_cold_joint + (D_wait * R_pump_day) + C_air_reship

where:

• N_mixers = Number of loaded ready-mix transit mixer trucks queued on site whose batch expires (> 90–120 min initial set) during the breakdown

• V_mixer = Concrete volume per transit mixer truck (8 to 10 m³)

• C_concrete/m3 = Ready-mix purchase price plus environmental washout/disposal fee ($/m³)

• C_cold_joint = Structural engineer remediation, concrete coring/scabbling, bonding agent, and general-contractor back-charge penalty for an unscheduled slab/wall cold joint ($)

• D_wait = Additional machine-down days waiting for air-freight re-shipment of the correct C8 / C10 / S-series part

• R_pump_day = Daily emergency sub-rental rate for a replacement 47m–56m boom pump ($/day)

• C_air_reship = Express DHL/air-freight charge for heavy steel S-valve, cylinder, or hydraulic hardware ($)

• 1-Line Worked Arithmetic Example: If an uninspected S-valve trunnion seizure or overhead DN125 elbow burst halts a bridge deck pour with N_mixers = 4 transit trucks (V_mixer = 9 m³ each = 36 m³ dumped at C_concrete/m3 = $165.00/m³ = $5,940.00), incurs a C_cold_joint = $4,500.00 structural cold-joint back-charge, and grounds the boom pump for D_wait = 6 days at R_pump_day = $1,850.00/day emergency pump sub-rental ($11,100.00) plus C_air_reship = $1,180.00 express air freight because an incompatible C8 vs. C10 wear kit was stocked, that single event costs C_pour_loss = (4 * 9 * 165) + 4,500 + (6 * 1,850) + 1,180 = $5,940.00 + $4,500.00 + $11,100.00 + $1,180.00 = $22,720.00.

• Minimum Safe Pipe Wall Thickness Check (EN 12001 / ASME B30.27 Hoop-Stress Formula): Under t_min = (P_max * SF_burst * D_outer) / (2 * sigma_allow), a DN125 (D_outer = 133 mm) boom pipe subjected to P_max = 13.0 MPa (130 bar) blockage pressure with the mandatory ASME B30.27 SF_burst = 2.0 safety factor (26.0 MPa burst pressure) and an eroded outer ductile shell / turbulent bend stress allowance (sigma_allow = 960 MPa effective dynamic hoop limit including bend ovality and coupling groove concentration) requires t_min = (13.0 * 2.0 * 133) / (2 * 960) = 3,458 / 1,920 = 1.80 mm—proving mathematically why DN125 boom elbows must be condemned at 1.8 to 2.0 mm on a UT gauge.

5-year (150,000 m³ pumped volume) concrete boom pump TCO ledger: reactive single-wall & unverified ordering vs. twin-wall/carbide & 4-zone verified program

The 5-year (150,000 m³ cumulative concrete pumped at 30,000 m³/year commercial utilization) Total Cost of Ownership (TCO) comparison below models a single SANY 47m–56m truck-mounted concrete boom pump (SYG5360THB 470C-10 / SYG5460THB 560C-10, DN260 × 1,900 mm) under stated reference conditions:

Also maintaining SANY excavators, cranes, or port reach stackers alongside your concrete fleet? Cross-reference this guide with our SANY diesel engine maintenance & HPCR filter guide, SANY crane parts supplier checklist, SANY reach stacker 4-dataplate identification guide, how to identify SANY filters, controllers, and seal kits, and SANY genuine vs. OEM parts verification guide.

Takeaway: Transitioning from unverified meter-class ordering and single-wall pipes to a 4-zone verified OEM program (Twin-Wall 62–65 HRC pipes + 5,000 m³ UT checks + matched tungsten-carbide S-valve kits at <= 2.0 mm gap) cuts 5-year operating cost from $145,160 ($0.97/m³) to $50,100 ($0.33/m³), saving $95,060 per boom pump.

6-row SANY concrete pump evidence worksheet and what to send us for a verified quote

Copy the 6-row evidence worksheet below into your procurement inquiry or quote request form message. When a plate character is stamped over or a subsystem is not involved in your order, write one of four explicit status words (unknown, unreadable, not supplied, or not applicable—for example, write "Row 4: Truck Carrier VIN — not applicable, stationary trailer pump HBT6016C-5S") rather than guessing characters from a similar machine:

How our Changsha export engineering desk verifies your concrete pump parts order

1. You submit the 6-row evidence worksheet and dataplate/caliper photos via our quote request form, SANY part-number lookup, or WhatsApp.
2. Our engineers cross-reference your SANY ISO 10261 superstructure PIN (C8 / C10 / S-series or HBT trailer series) against the Changsha factory build sheet AND verify your caliper dimensions (DN200 / DN230 / DN260 bore, stroke length, spline tooth count, DN125 SK 148 mm flange) and Bosch Rexroth / Stiebel PTO tags, confirming exact fitment within 24 hours.
3. You receive a written quotation clearly stating the supply tier (Tier 1 SANY Genuine Boxed vs. Tier 2 Tier-1 OEM Direct / Vacuum-Brazed Carbide Upgrade), lead time, and DHL/air or sea freight options, followed by pre-shipment dimensional inspection photos before dispatch. (Note: SANY Parts is an independent export supplier, not SANY Group, Putzmeister America, or an authorized regional dealer.)

Takeaway: Send the 6-row worksheet and straight-on photos of your SANY superstructure plate, old-part label, and Rexroth/PTO tags so our engineering desk can lock fitment before quoting.

Common questions about SANY concrete pump parts identification, S-valve wear kits, and boom pipelines

Why can't I order a SANY concrete pump wear plate, cutting ring, or delivery cylinder using only the boom length (e.g., "SANY 37m" or "SANY 56m")?

Nominal boom reach (37m, 43m, 47m, 56m, 62m) only describes the vertical unfolding height of the placing boom—it does not lock the pumping unit generation (C8 vs. C10 vs. S-series) or the cylinder bore and stroke. For example, in SANY's official 56m boom pump catalog alone, the SYM5445THB 560C-8 (C8 generation) uses a DN260 × 2,100 mm delivery cylinder (29 strokes/min LP), whereas the SYG5460THB 560C-10(SZ-AM) (C10 generation) uses a DN260 × 1,900 mm delivery cylinder (33 strokes/min LP). Across C8, C10, and S-series transitions, spectacle plate bolt spacing, cutting ring outer step diameters, and 38CrMoAl S-tube spline tooth counts (21T / 24T / 26T) also differ. Always send the full model suffix, superstructure PIN, and caliper measurements.

When should a SANY tungsten-carbide spectacle wear plate and cutting ring be replaced, and can I replace only the cutting ring?

Inspect the axial clearance between the spectacle wear plate (13153285 for DN200, 13025478 / A810301032000 for DN230, 12830900 / 12063488 / A810301032057 for DN260) and the floating cutting ring (13153238 / 13026494 / 13149385) every 2,500 m³ with a feeler gauge. Whenever the axial slurry gap or localized erosion groove exceeds 1.5 to 2.0 mm, replace the spectacle wear plate, cutting ring, and rubber thrust backing ring together as a matched set. Installing a new flat cutting ring against a grooved old spectacle plate leaves an immediate high-pressure leakage path (83–130 bar on boom pumps), causing cement slurry to jet backward into the S-tube trunnion seal and seize the rock shaft within 1,500 to 3,000 m³.

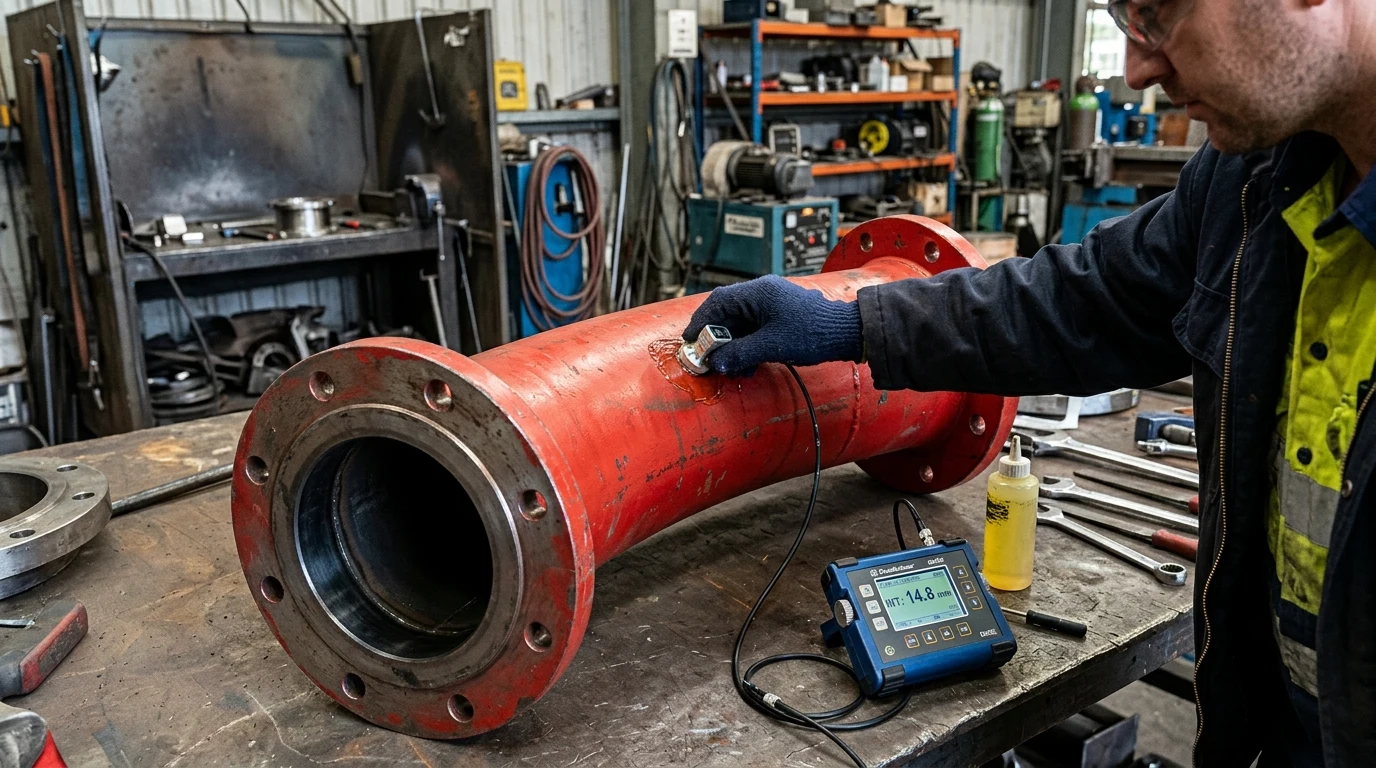

How often should SANY DN125 boom delivery pipes and elbows be inspected with an ultrasonic thickness (UT) gauge, and what is the minimum safe wall thickness?

Under EN 12001:2012 and ASME B30.27 (which mandates a minimum 2:1 burst-to-working pressure safety factor across all concrete delivery lines), audit all overhead DN125 (SK 148 mm flange per DIN 24118) boom pipes and high-turbulence R275 / R350 / R500 / R1000 elbows with a calibrated Ultrasonic Thickness (UT) gauge every 5,000 m³. Condemn and replace any boom pipe or elbow before residual wall thickness wears below 1.8 to 2.0 mm. On Twin-Wall bi-metallic pipes (4.5 mm / 5.5 mm composite wall with a 2.5–3.0 mm 62–65 HRC inner high-Cr alloy wear liner inside a ductile ST52 / 37Mn5 outer shell), wearing completely through the inner Cr liner causes rapid outer-shell thinning and liner delamination plugs.

Are SANY concrete pump parts and Putzmeister concrete pump parts interchangeable?

No. Although Putzmeister America, Inc. has supported a dedicated North American offering of SANY truck-mounted boom pumps (SY32 Z5-200 US, SY39 RZ5-200 US, SY47 RZ5-200 US, SY56 RZ6-200 US, and SY68 RZR6-200 US) since February 2020 under its parent company Sany Group, SANY part numbers and Putzmeister part numbers are separate engineering systems. A SANY SYM / SYG / HBT S-valve wear plate, S-tube spline shaft, or SK 148 mm boom pipe does not automatically interchange with a Putzmeister BSF / BSA wear part or ZX flange pipeline. Always preserve the exact machine brand, model suffix, and serial number printed on your nameplate.

What information is required to order a Bosch Rexroth A11VO190 / A11VO260 main hydraulic pump or Stiebel / ZF transfer case (PTO) part for a SANY concrete pump?

Photograph the riveted metal specification tag directly on the hydraulic pump housing or transfer case housing straight on. For a Bosch Rexroth A11VO190 or A11VO260 main pump, we require the 10-digit Rexroth Material Number (MNR: R902xxxxxx), the complete model code (e.g., A11VO260LRDH2/11R-NZD12K02, which locks displacement 190 vs. 260 cm³/rev, regulator type LRDS vs. LRDH2, shaft rotation R vs. L, and rear tandem through-drive flange K01 / K02 / K83), and the pump serial number. For a Stiebel (4318 / 4395) or ZF transfer case (PTO), provide the gearbox model, BOM specification number, serial number, and step-up ratio i.

Methodology, standards, and sources

• International engineering and safety standards referenced: Mobile and stationary concrete conveying and placing machine safety requirements, hopper grille interlocks, outrigger stability, and overhead boom pipeline integrity follow EN 12001:2012 (Conveying, spraying and placing machines for concrete and mortar — Safety requirements). Pipeline pressure containment, component marking, ultrasonic wall-thickness monitoring, and the mandatory >= 2:1 burst-to-working pressure safety factor (>= 240–260 bar burst rating for 120–130 bar high-pressure boom pumps) follow ASME B30.27 (Material Placement Systems). Concrete delivery pipe nominal diameters (DN125 / 133 mm OD), high-pressure weld-on collar geometry (SK 125 5.5-inch / 148 mm vs. ZX 125), and bi-metallic Twin-Wall (62–65 HRC inner high-Cr wear liner + ductile ST52 / 37Mn5 outer shell) specifications follow DIN 24118. Whole-machine 17-character superstructure Product Identification Number (PIN) coding follows ISO 10261:2021, and hydraulic cleanliness/filtration follows ISO 4406 and ISO 16889.
• OEM brochures, part baselines, and regional documentation: Truck-mounted concrete boom pump specifications (SYG5230THB 370C-10, SYG5231THB 370C-8(SZ-IN), SYG5310THB 430C-10, SYG5360THB 470C-10(SZ-AM), SYM5445THB 560C-8, SYG5460THB 560C-10(SZ-AM), SYG5521THB 630S, SYM5590THB 680C-10, and SYM5552THB 710SA) and stationary trailer pump specifications (HBT6013C-5S, HBT6016C-5S, HBT8018C-5S, and HBT9028CH-5S) are compiled from the SANY Global Truck-Mounted Concrete Pump Directory and SANY Global Trailer Pump Directory, official SANY technical specification brochures (2024–2025Changsha editions), the Putzmeister America SANY Concrete Machinery support page (SY32 / SY39 / SY47 / SY56 / SY68 US series), SANY concrete wear-part OEM baselines (13153285, 13153238, 12828563, 12829335, 13025478, A810301032000, 13026494, A810301032021, 12830900, 12063488, A810301032057, 13149385, A810301032054, A810301032055, A820202004946, A820206011565, A820206013918, 12724859, 12724866, 12708591), and sanyparts.net catalog baselines (repo-part-numbers-baseline.csv, verified October 2026).
• Verification scope: Published catalog dimensions, volumetric wear-life baselines, and TCO models represent standard engineering reference conditions. Because SANY concrete machinery undergoes generation transitions (C8 -> C10 -> S-series) and regional chassis pairings, our Changsha engineering desk verifies your 6-row worksheet, superstructure PIN, caliper measurements, and sub-vendor dataplate photos in writing before issuing a firm quotation.
